GEORG SCHLEGEL

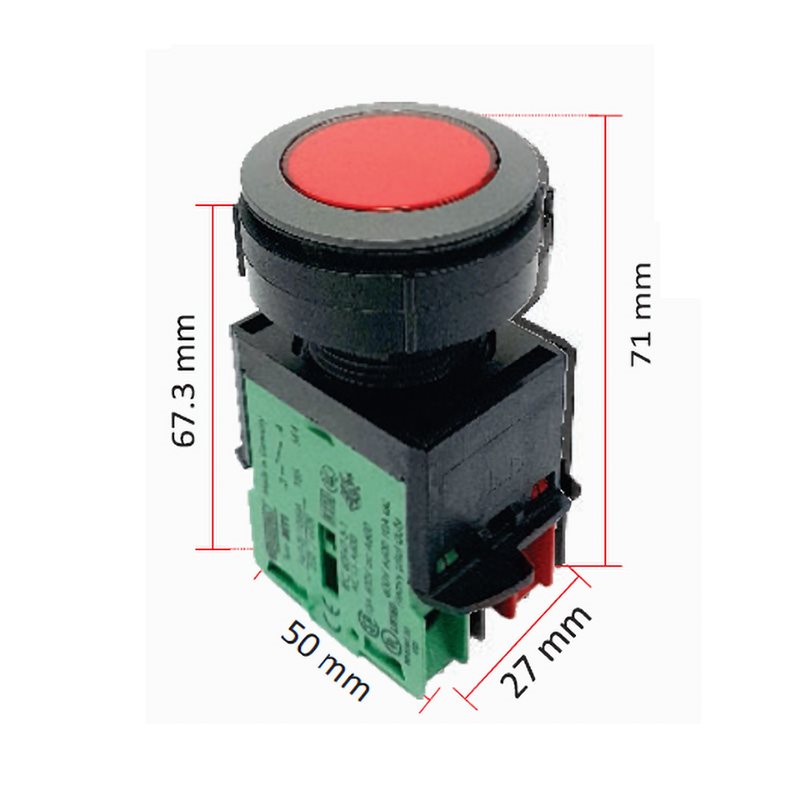

Kombitast Juwel Round Illuminated Push Button 230V Momentary
Illuminated round flushed-mounting push button with maintain contact. Len and LED are available in clear (white), blue, green. red and yellow
Label
Data
Panel cut-out :
Ø30.5 mm²

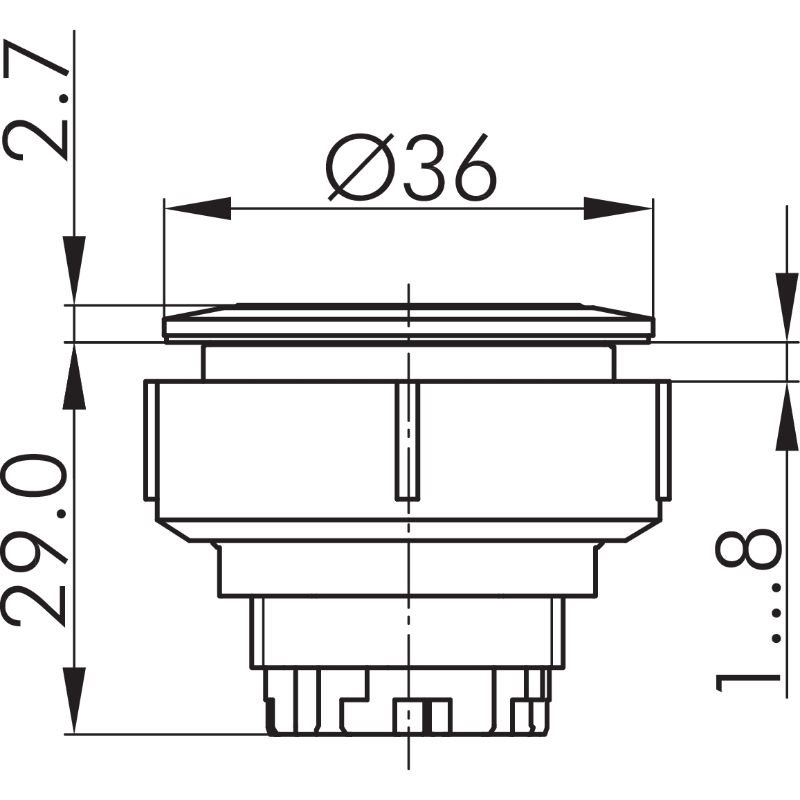

Front Bezel Size :
Ø36 mm², height 2.7mm
IP Rating :
IP66
Switching function :
Momentary
Connection type :
Faston Terminal 2.8 x 0.8mm
See MoreClose

Part Number

Contact Configuration

Colour

GS1 KRJMT-11-220-BL

1NO 1NC

Blue

GS1 KRJMT-11-220-GB

1NO 1NC

Yellow

GS1 KRJMT-11-220-GN

1NO 1NC

Green

GS1 KRJMT-11-220-KL

1NO 1NC

Clear

GS1 KRJMT-11-220-RT

1NO 1NC

Red

GS1 KRJMT-22-220-BL

2NO 2NC

Blue

GS1 KRJMT-22-220-GB

2NO 2NC

Yellow

GS1 KRJMT-22-220-GN

2NO 2NC

Green

GS1 KRJMT-22-220-KL

2NO 2NC

Clear

GS1 KRJMT-22-220-RT

2NO 2NC

Red
