TENSE
Energy Analyzer TPM-01 Series
Front panel mounting (cutout hole 91mm²), measuring voltage and current harmonics.
Operating Voltage / Frequency
85 ~ 240 VAC / 50 ~ 60 Hz
Operating Temperature
-20°C ~ 55°C
Voltage Input / Measuring Range
5 ~ 330 VAC / 5V ~ 330kV
Current Input / Measuring Range
10mA ~ 5.5A / 10mA ~ 5.500A
Voltage, Current Accuracy
%±0.5
Active / Reactive Accuracy %±2
%±1 / %±2

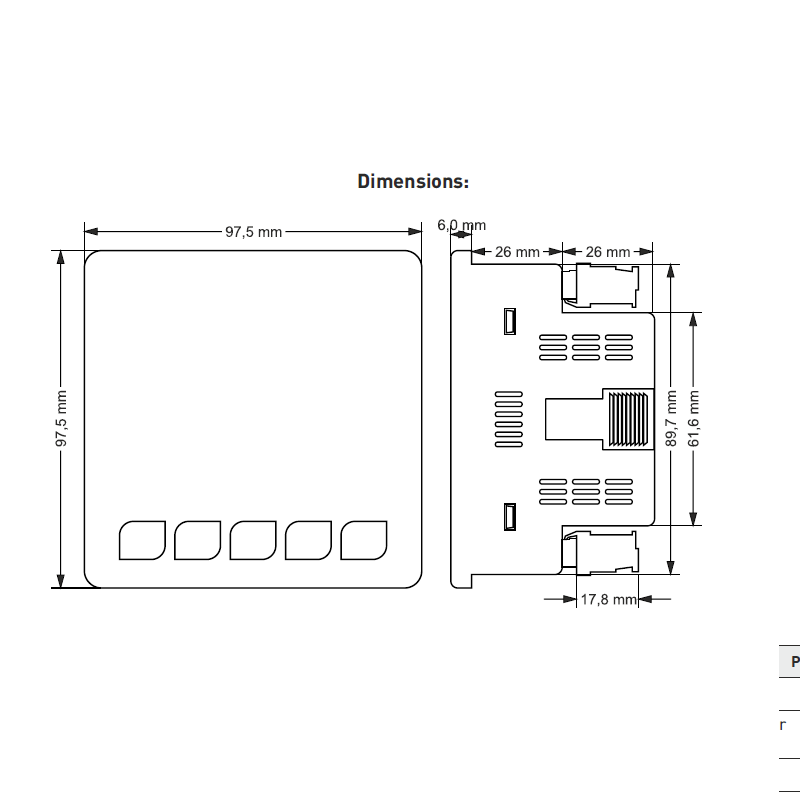

Outer Dimension
97.5 x 97.5 x 52mm
Communication (for TPM-01ESH only)
RS485 MODBUS RTU
Baudrate / Stop Bit (for TPM-01ESH only)
1200bps - 38400bps / 1 or 2
Parity (for TPM-01ESH only)
None, Even, Odd
