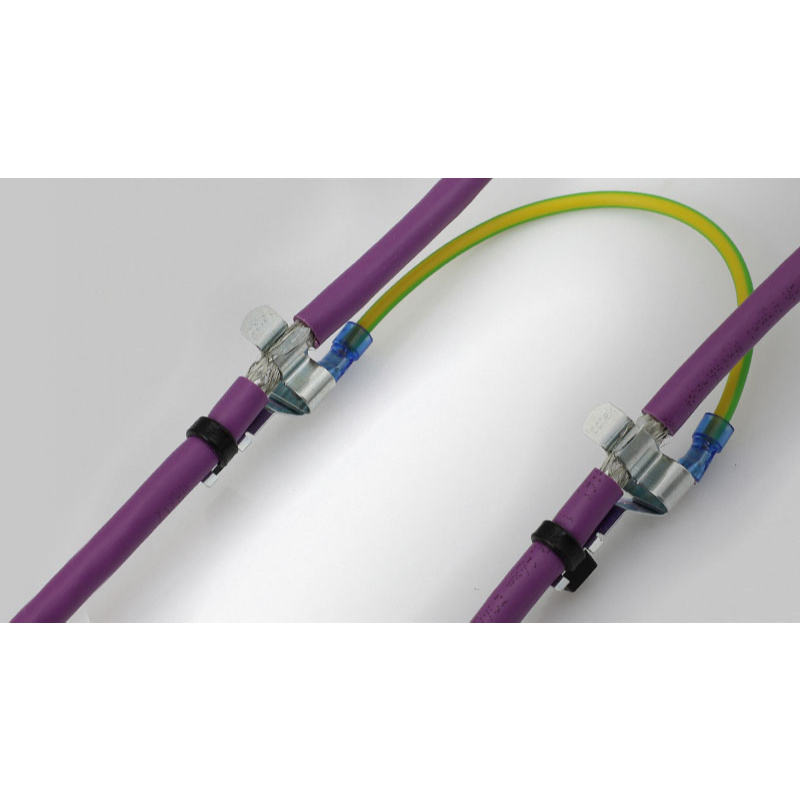

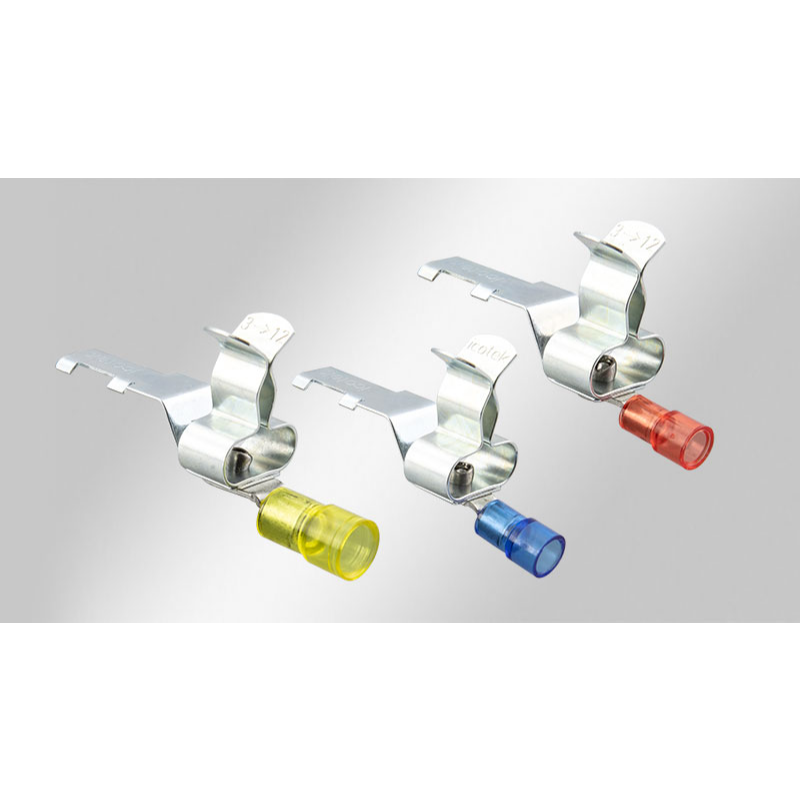

EMC shield clamps on cable lugs
with or without integrated cable fixing function
Label
Data
Material
Shield clamp: Spring steel, zinc plated Mounting foot: Polycarbonate
Operating temperature
-30°C to 120°C
Properties
vibration proof
Mounting options
Clamping
Enquire Now

Type

Min.
shield dia

Max. shield dia

Order No.

MOQ


RCL 0.5-1.5mm2|SKL 1.5-3

1.5 mm

3 mm

36296.1

25



RCL 0.5-1.5mm2|MSKL 3-12

3 mm

12 mm

36296.2

25



RCL 1.0-2.5mm2|SKL 1.5-3

1.5 mm

3 mm

36297.1

25



RCL 1.0-2.5mm2|SKL 3-6

3 mm

6 mm

36297.3

25



RCL 1.0-2.5mm2|SKL 6-8

6 mm

8 mm

36297.4

25



RCL 1.0-2.5mm2|SKL 8-11

8 mm

11 mm

36297.5

25



RCL 1.0-2.5mm2|MSKL 3-12

3 mm

12 mm

36297.2

25



RCL 4-6mm2|SKL 1.5-3

1.5 mm

3 mm

36298.1

25



RCL 4-6mm2|MSKL 3-12

3 mm

12 mm

36298.2

25



RCLZ-M 0.5-1.5mm2|MSKL 3-12

3 mm

12 mm

36301.2

25



RCLZ-M 1.0-2.5mm2|MSKL 3-12

3 mm

12 mm

36302.2

25



RCLZ-M 4-6mm2|MSKL 3-12

3 mm

12 mm

36303.2

25
