TENSE
Ethernet Gateway - ETH-MOD-T
Designed for data transfer and control to/from devices i.e.: Energy Analyzers, Multimeters, etc, to TCP/IP-based connection infrastructure, i.e.; remote PC.
Operating Voltage/Frequency
85 ~ 300 VAC / 50 ~ 60 Hz
Operating Temperature
-20°C ~ 55°C
Connectivity

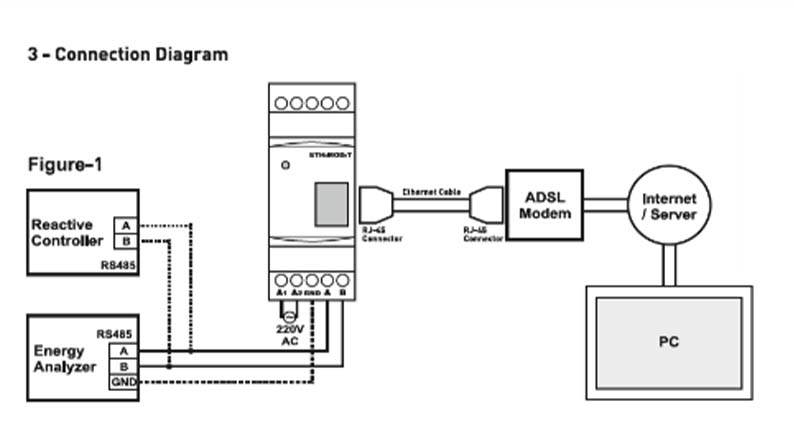

RS485 with devices (Modbus), Rj45 for LAN/WAN (TCP/IP), with UDP, TCP Client and TCP Server Operation Mode
Dimension
97.5 x 97.5 x 52mm
Display
71.5 x 61.5 Custom Design Glass LCD
