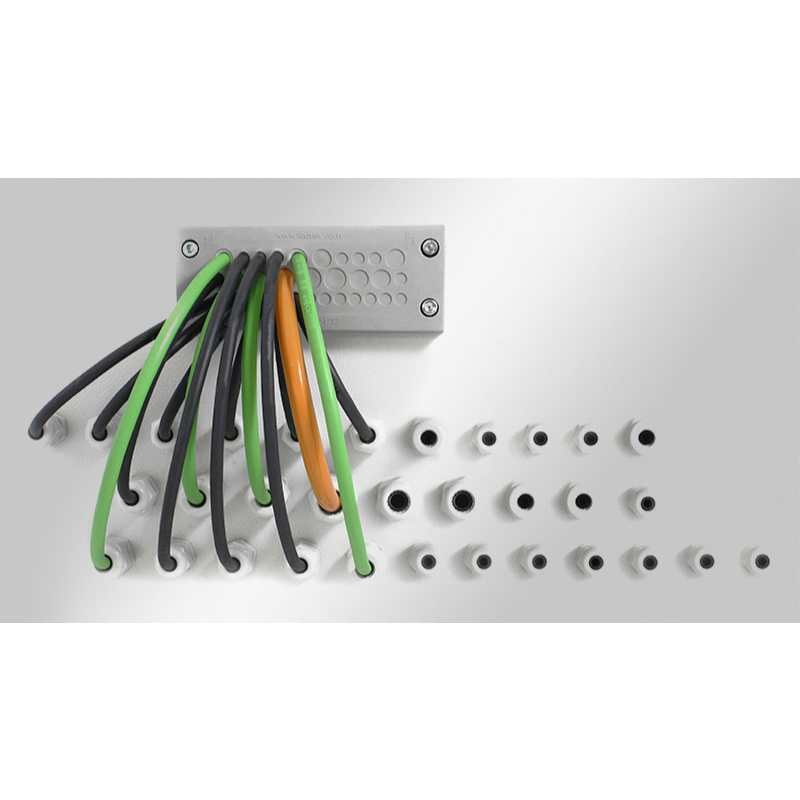

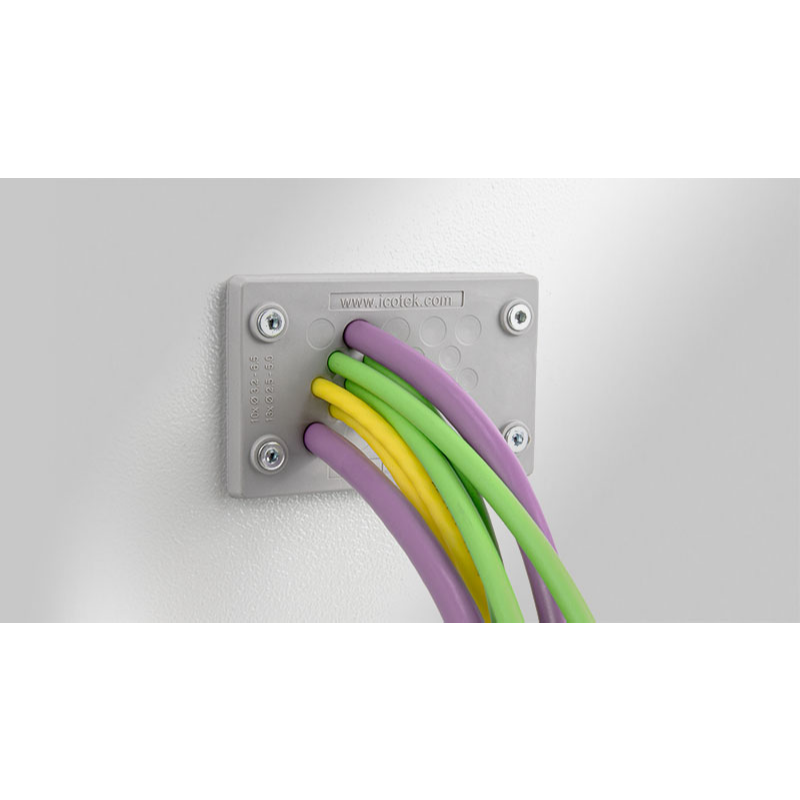

KEL-DPZ multi-membrane cable entry plates

with high cable density / IP66 / UL Type 12

Label

Data

Material

Elastomer

Flammability Rating

IP 54, IP55, IP64, IP65, IP66, IP67, IP68

IP Rating

-40°C ~ 100°C

Operating Temperature

silicone free, halogen free

Properties

silicone free, halogen free

See MoreClose

Enquire Now

Product Information

Type	Clamping range	Order No.	MOQ
KEL-DPZ 24\|14 gy	10 x 3.2 - 6.5 mm 4 x 16 - 22 mm	43700	10
KEL-DPZ 24\|14 bk	10 x 3.2 - 6.5 mm 4 x 16 - 22 mm	50700	10
KEL-DPZ 24\|15 gy	15 x 7.2 - 12 mm	43720	10
KEL-DPZ 24\|15 bk	15 x 7.2 - 12 mm	50720	10
KEL-DPZ 24\|16 gy	8 x 3.2 - 6.5 mm 4 x 5 - 9.7 mm 2 x 9 - 16.2 mm 2 x 16 - 22 mm	43725	10
KEL-DPZ 24\|16 bk	8 x 3.2 - 6.5 mm 4 x 5 - 9.7 mm 2 x 9 - 16.2 mm 2 x 16 - 22 mm	50725	10
KEL-DPZ 24\|17 gy	6 x 3.2 - 6.5 mm 6 x 5 - 10.2 mm 5 x 9 - 16.2 mm	43705	10
KEL-DPZ 24\|17 bk	6 x 3.2 - 6.5 mm 6 x 5 - 10.2 mm 5 x 9 - 16.2 mm	50705	10
KEL-DPZ 24\|25 gy	12 x 3.2 - 6.5 mm 7 x 4.8 - 9.7 mm 6 x 7.5 - 12 mm	43710	10
KEL-DPZ 24\|25 bk	12 x 3.2 - 6.5 mm 7 x 4.8 - 9.7 mm 6 x 7.5 - 12 mm	50710	10
KEL-DPZ 24\|26 gy	26 x 5 - 10.2 mm	43711	10
KEL-DPZ 24\|26 bk	26 x 5 - 10.2 mm	50711	10
KEL-DPZ 24\|32 gy	21 x 3.2 - 6.5 mm 8 x 5 - 10.2 mm 3 x 7.5 - 12 mm	43730	10
KEL-DPZ 24\|32 bk	21 x 3.2 - 6.5 mm 8 x 5 - 10.2 mm 3 x 7.5 - 12 mm	50730	10
KEL-DPZ 24\|42 gy	42 x 3.2 - 6.5 mm	43715	10
KEL-DPZ 24\|42 bk	42 x 3.2 - 6.5 mm	50715	10
KEL-DPZ 24\|121 gy	119 x 1.5 - 2.6 mm 2 x 2.5 - 5 mm	43735	10
KEL-DPZ 24\|121 bk	119 x 1.5 - 2.6 mm 2 x 2.5 - 5 mm	50735	10
KEL-DPZ 16\|14 gy	5 x 3.2 - 6.5 mm 5 x 5 - 10.2 mm 4 x 9 - 16.2 mm	43816	10
KEL-DPZ 16\|20 gy	11 x 3.2 - 6.5 mm 5 x 5 - 10.2 mm 4 x 7.5 - 12 mm	43817	10
KEL-DPZ 16\|25 gy	16 x 3.2 - 6.5 mm 6 x 5 - 10.2 mm 3 x 7.5 - 12 mm	43818	10
KEL-DPZ 16\|34 gy	34 x 3.2 - 6.5 mm	43819	10
KEL-DPZ 10\|8 gy	8 x 7.5 - 12 mm	43800	10
KEL-DPZ 10\|14 gy	14 x 5 - 10.2 mm	43801	10
KEL-DPZ 10\|15 gy	5 x 3.2 - 6.5 mm 10 x 5 - 10.2 mm	43802	10
KEL-DPZ 10\|16 gy	9 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm 3 x 7.5 - 12 mm	43803	10
KEL-DPZ 10\|26 gy	26 x 3.2 - 6.5 mm	43804	10
KEL-DPZ 6\|12 gy	12 x 4.5 - 8 mm	43809	10
KEL-DPZ 6\|18 gy	18 x 3.2 - 6.5 mm	43812	10
KEL-DPZ 6\|18-1 gy	6 x 2.5 - 5 mm 5 x 3.2 - 6.5 mm 7 x 4.5 - 8 mm	43811	10
KEL-DPZ 6\|23 gy	10 x 3.2 - 6.5 mm 13 x 2.5 - 5 mm	43813	10
KEL-DPZ 6\|27 gy	27 x 2.5 - 5 mm	43814	10
KEL-DPZ-B 13 gy	8 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm 1 x 16 - 22 mm	43794	10
KEL-DPZ-B 13 bk	8 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm 1 x 16 - 22 mm	50794	10
KEL-DPZ-B 17 gy	10 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm 2 x 7.5 - 12 mm 1 x 9 - 16.2 mm	43796	10
KEL-DPZ-B 17 bk	10 x 3.2 - 6.5 mm 4 x 5 - 10.2 mm 2 x 7.5 - 12 mm 1 x 9 - 16.2 mm	50796	10
KEL-DPZ-B 25 gy	25 x 3.2 - 6.5 mm	43798	10
KEL-DPZ-B 25 bk	25 x 3.2 - 6.5 mm	50798	10
KEL-DPZ-E 112\|7 gy	7 x 7.5 - 12 mm	43780	10
KEL-DPZ-E 112\|7 bk	7 x 7.5 - 12 mm	50780	10
KEL-DPZ-E 112\|21 gy	21 x 3.2 - 6.5 mm	43790	10
KEL-DPZ-E 112\|21 bk	21 x 3.2 - 6.5 mm	50790	10
KEL-DPZ-KX/KL 72 gy	42 x 3.2 - 6.5 mm 21 x 5 - 10.2 mm 6 x 9 - 16.2 mm 3 x 16 - 22 mm	43675	10
KEL-DPZ-KX/KL 72 bk	42 x 3.2 - 6.5 mm 21 x 5 - 10.2 mm 6 x 9 - 16.2 mm 3 x 16 - 22 mm	43675.1	10
