TENSE

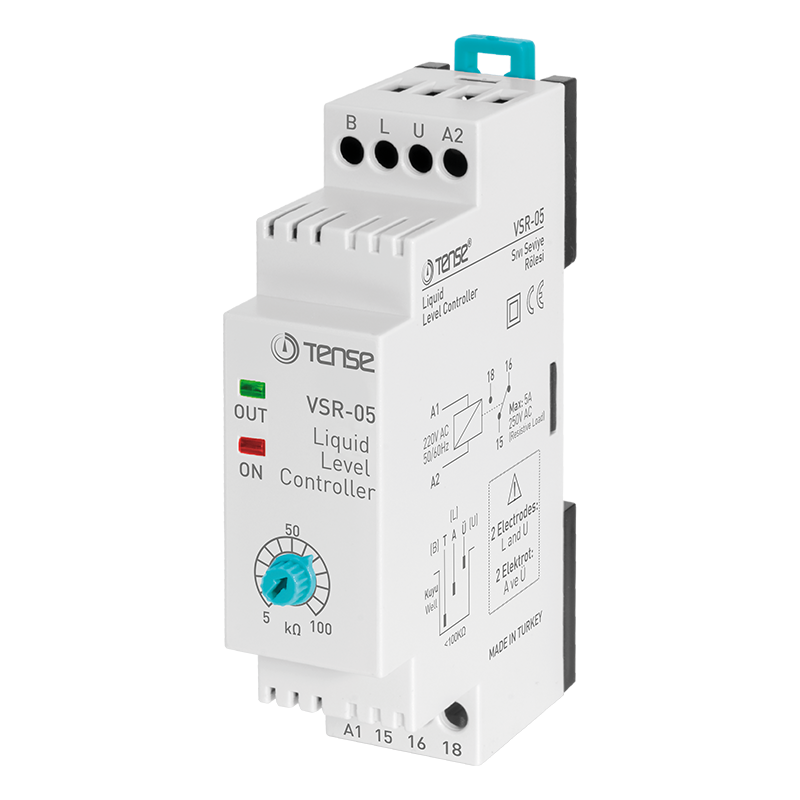

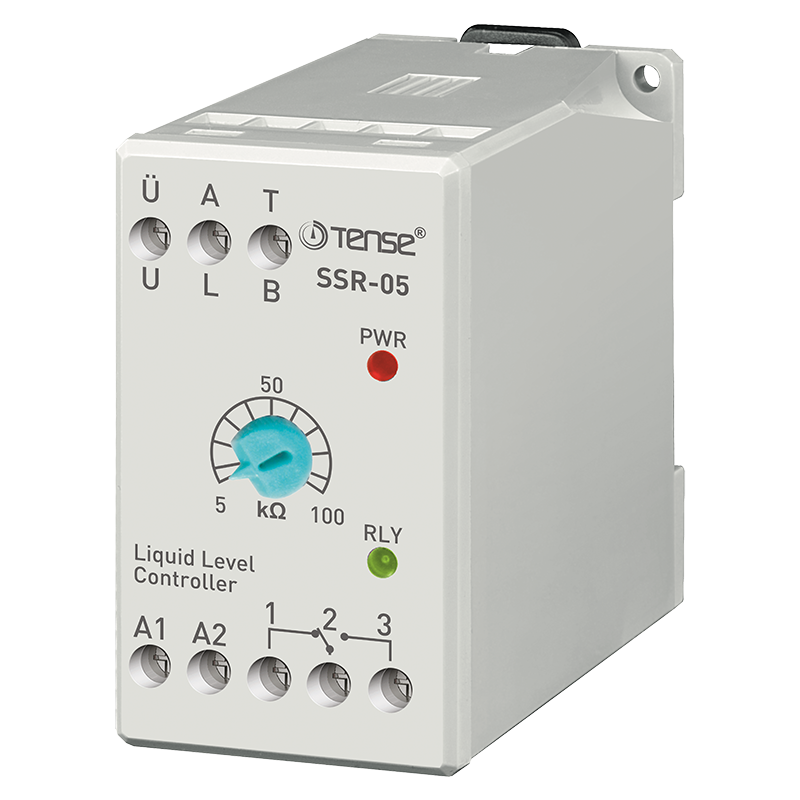

Liquid Level Relays - VRS-5 & SSR-05
Liquid level control relays are designed for controlling the discharge of tanks
and wells containing conductive liquids.
Dimension:
90 x 23,15 x 57,75mm (VSR-05) / 75 x 44 x 84,5 mm (SSR-05)
Operating Voltage(Un):
150 - 260V AC
Operating Frequency:
50/60 Hz.
Operating Temperature:
-20°C ~ +55°C
Contact:
5A/250V AC (Resistive Load)
Mounting:
Vertical assembled in the panel or assembled on the din rail
Connection Type:
Terminal connection
Cable Diameter:
1,5mm²(VSR-05), / 2,5mm²(SSR-05)
