Multimeter with 3×6 Digit LED Display - EM-06DIN
EM-06DIN is designed to monitor 3 phase current, voltage and frequency values in a single device.
Operating Voltage / Frequency:
150 ~ 270V AC / 50/60Hz.
Voltage Measuring Range:
1V - 300V AC (L-N), 1V - 500V AC (L-L)
Current Measuring Range:
100mA - 5A (5/5A - 9995/5A)
Operating Power: <6VA
<6VA
Operating Temp.:
-20°C. +55°C
Display:
3 digit 6 x display + 9 LEDs
Connection Type:

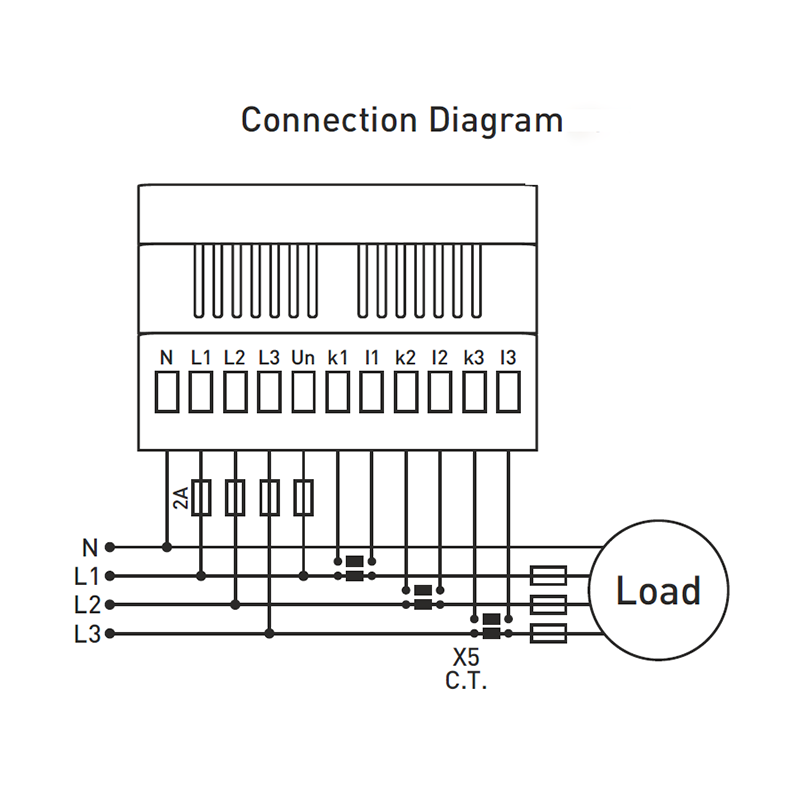

Plug-in terminal connection
Mounting:
Mount on the DIN rail
IP Protection:
IP41 (Front Panel), IP00 (Body)
