Home/Products/Terminal Block/Push-in Type Earth Terminal Block
TBLOC

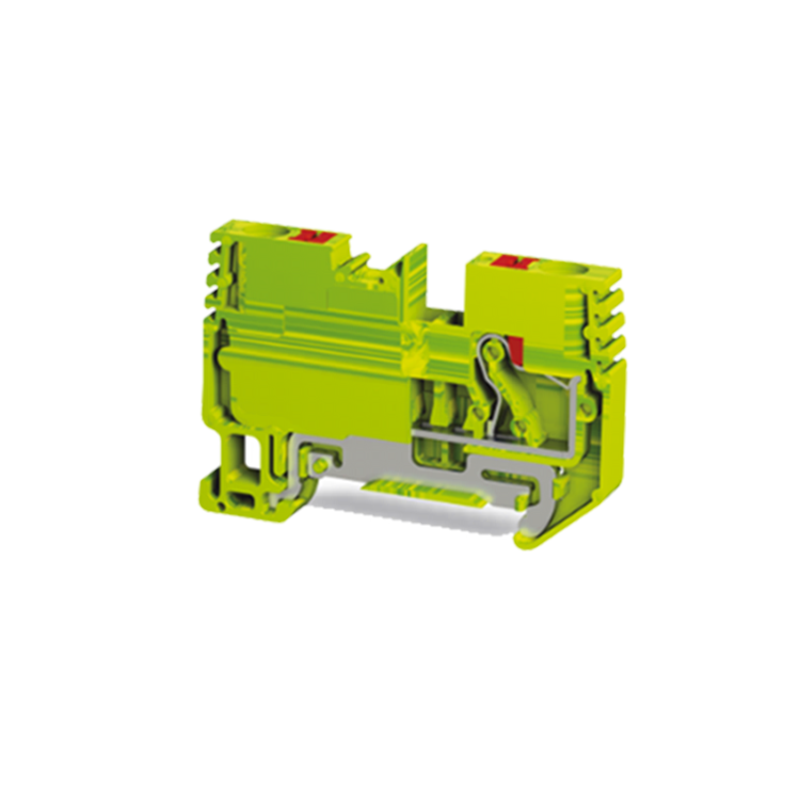

Push-in Type Earth Terminal Block
IEC certified Earth terminal block with rated cross-section from 2.5mm² to 16mm² (AWG 20-12 to 20-4)
Label
Data
Material
Polyamide (PA) 6.6
Operating Temperature
-40⁰C to +80⁰C
Mounting Method
Top hat rail N35, EN60715 TH35
Flammability
UL94 V-2
Colour
Green-Yellow
See MoreClose
Download PDF
Enquire Now

Model Number

Rated Cross Section

Size L x H x W in mm
(Based on Din rail H7.5mm)

Accessories Marking Tag:

PFT 2,5 E

2.5mm² / AWG 20-12

54 x 37.7 x 5

MTG 5

PFT 4 E

4mm² / AWG 20-10

54 x 37.7 x 6

MTG 6

PFT 6 E

6mm² / AWG 20-8

61.8 x 49.4 x 8

MTG 8

PFT 10 E

10mm² / AWG 20-6

68 x 50.54 x 10

MTG 5

PFT 16 E

16mm² / AWG 20-4

71.5 x 50.5 x 12

MTG 10
