RSKM-M Metal Cable Gland
Metal Cable Gland is used on all types of cables such as electrical power, power instrumentation, data and telecommunication. Used as a sealing and termination device. It stops ingress of particles,
Material
Brass, Nickel-plated
Plastic Part
PA66
Sealing Part
Silicon
IP Rating
IP68
Clamping Range
3 ~ 44 mm
Operating Temperature
-40°C ~ 100°C.
Enquire Now

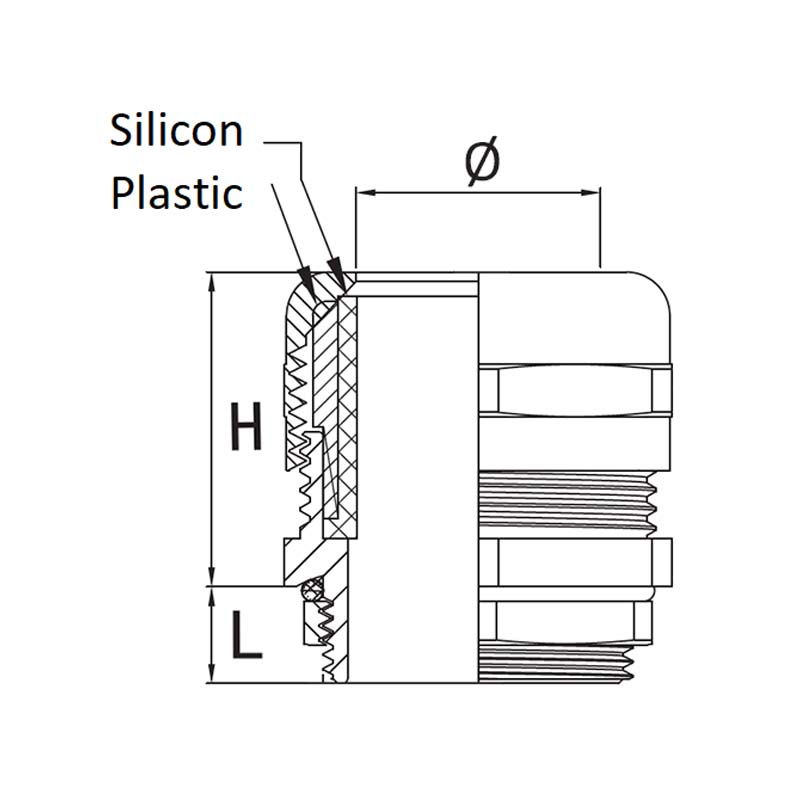

Cable Range
(Ø mm)		 Cutout Thread Length
(L mm)		 Assembly
(H mm)		 P/N
3 ~ 6.5 M12 7 19 9HT RSKM-M12A-C-OM
4 ~ 8 M16 7 21 9HT RSKM-M16A-C-OM
6 ~ 12 M20 8 22 9HT RSKM-M20A-C-OM
9 ~ 16 M25 8 26 9HT RSKM-M25A-C-OM
16 ~ 25 M32 10 34 9HT RSKM-M32A-C-OM
22 ~ 32 M40 10 37 9HT RSKM-M40A-C-OM
32 ~ 38 M50 11 37 9HT RSKM-M50A-C-OM
37 ~ 44 M63 11 38 9HT RSKM-M63A-C-OM







Visit our collabration with EEZEE online marketplace to access quickly and place order to our various cable glands - //eezee.sg/brands/secfetronik
