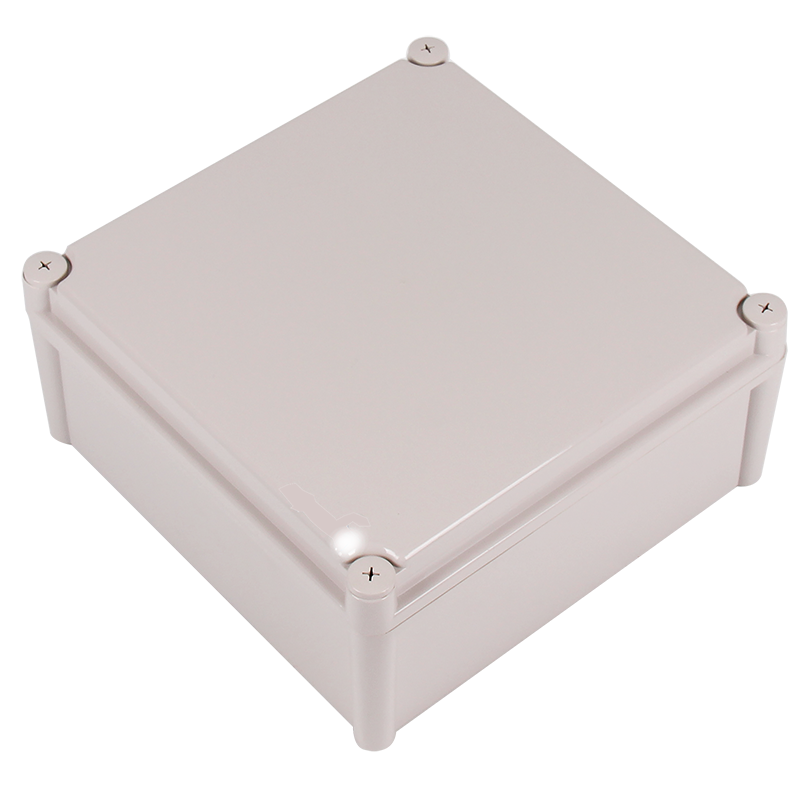

Outdoor Junction Box (ABS cover/ABS body)

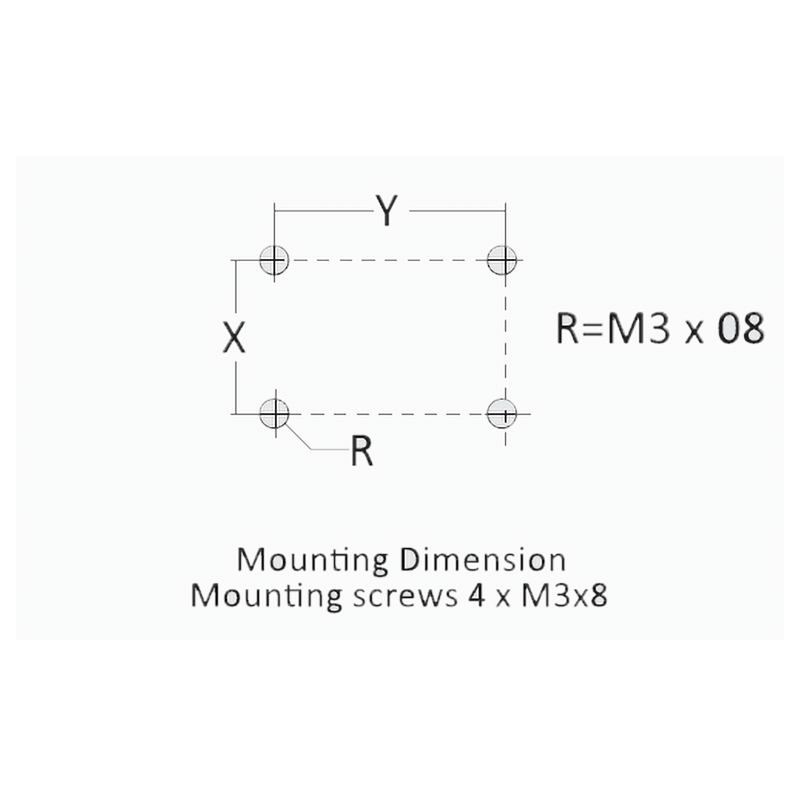

Ready to mount with thermoplastic mounting plate included* * - For depth 100mm & above only
Material
ABS
Flammability Rating
UL94 V-HB40
IP Rating
IP66
Impact rating
IK10
Operating Temperature
-25°C ~ 60°C
Colour
Grey
OUTER DIMENSION (mm) PART NUMBER BASE PLATE INCLUSIVE
110 x 80 x 70 9SW-PAG-0811
110 x 80 x 85 9SW-PAG-0811-1
125 x 125 x 75 9SW-PAG-1212-S YES
125 x 125 x 100 9SW-PAG-1212 YES
130 x 80 x 70 9SW-PAG-0813
130 x 80 x 85 9SW-PAG-0813-1
175 x 125 x 75 9SW-PAG-1217 YES
175 x 125 x 100 9SW-PAG-1217-1 YES
180 x 80 x 65 9SW-PAG-0818
250 x 80 x 65 9SW-PAG-0825
250 x 80 x 85 9SW-PAG-0825-1
170 x 140 x 95 9SW-PAG-1417 YES
200 x 150 x 100 9SW-PAG-1520 YES
200 x 150 x 130 9SW-PAG-1520-1 YES
250 x 150 x 100 9SW-PAG-1525 YES
250 x 150 x 130 9SW-PAG-1525-1 YES
280 x 190 x 130 9SW-PAG-2819 YES
280 x 190 x 180 SW-PAG-2819-1 YES
280 x 280 x 130 9SW-PAG-2828 YES
280 x 280 x 180 9SW-PAG-2828-1 YES
380 x 280 x 130 9SW-PAG-3828 YES
380 x 280 x 180 9SW-PAG-3828-1 YES
