Outdoor Enclosure Cabinet with Stainless Hinges / Clasps
Cover equipped with stainless hinges and clasp for durability. Ready to mount with thermoplastic mounting plate included.
Material
ABS
Flammability Rating
UL94 V-HB40
IP Rating
IP65
Impact rating
IK10
Operating Temperature
-25°C ~ 60°C
Colour
Grey
Download PDF
Enquire Now

Outdoor Enclosure Cabinet with Stainless Hinges / Clasps.  To buy online, please click to visit our store at EEZEE Online Marketplace.

Sizes

Outer Dimension (mm)

( H x W x D )

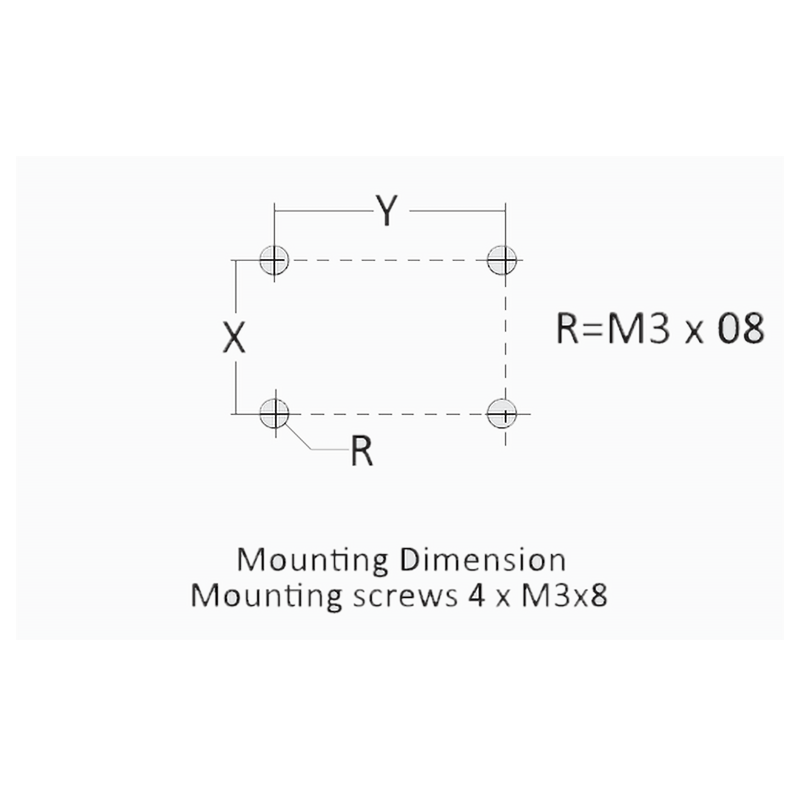

Mounting dimensions (mm)

( Y - X )

 P/N
170 x 140 x 95 152 x 122 9SW-PAGS-1417
200 x 150 x 100  182 x 132 9SW-PAGS-1520
200 x 150 x 130  182 x 132 9SW-PAGS-1520-1
250 x 150 x 100  232 x 132 9SW-PAGS-1525
250 x 150 x 130   232 x 132 9SW-PAGS-1525-1
280 x 190 x 130  254 x 164 9SW-PAGS-2819
280 x 190 x 180  254 x 164 9SW-PAGS-2819-1
280 x 280 x 130  254 x 254 9SW-PAGS-2828
280 x 280 x 180   254 x 254 9SW-PAGS-2828-1
380 x 280 x 130  354 x 254 9SW-PAGS-3828
380 x 280 x 180   354 x 254 9SW-PAGS-3828-1
