Rondex Juwel Round Illuminated Push Button Momentary (Charcoal Bezel)
GEORG SCHLEGEL
Rondex Juwel Round Illuminated Push Button Momentary (Charcoal Bezel)

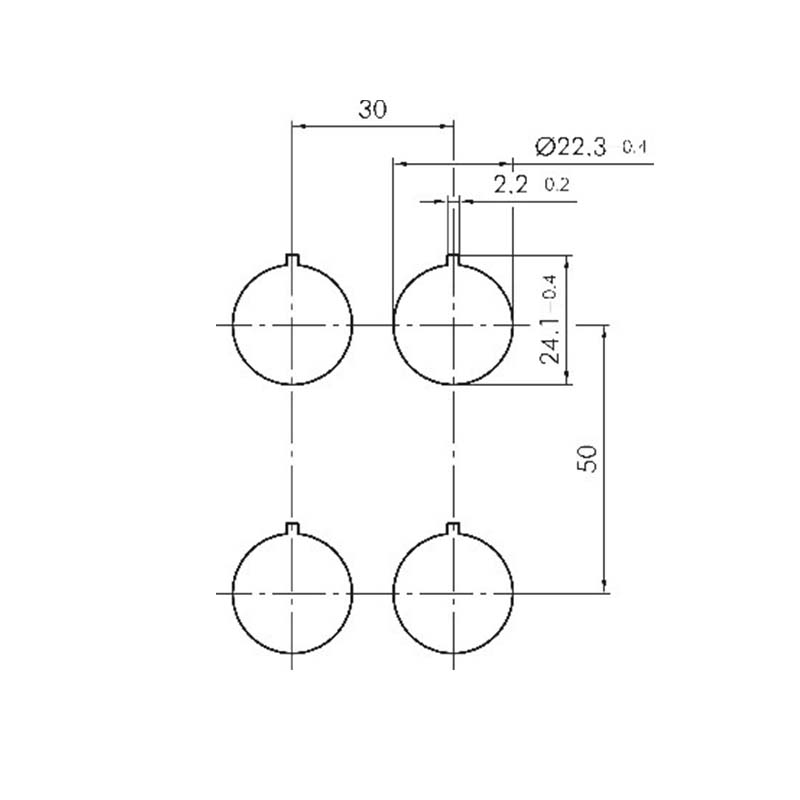

Panel Cut-out
Ø 22.3 mm
Degree of protection
IP65 / IP67
LED Voltage
24V
Shape
Round
Switching Function
Momentary
Connection Type
Screw Connection 2 x 2.5 mm²
Enquire Now
Product Information
Model Number
Color
Contact
GS1 JRT-11-24-BL
Blue
1 NO + 1 NC
GS1 JRT-11-24-GB
Yellow
1 NO + 1 NC
GS1 JRT-11-24-GN
Green
1 NO + 1 NC
GS1 JRT-11-24-KL
Clear
1 NO + 1 NC
GS1 JRT-11-24-RT
Red
1 NO + 1 NC
GS1 JRT-22-24-BL
Blue
2 NO + 2 NC
GS1 JRT-22-24-GB
Yellow
2 NO + 2 NC
GS1 JRT-22-24-GN
Green
2 NO + 2 NC
GS1 JRT-22-24-KL
Clear
2 NO + 2 NC
GS1 JRT-22-24-RT
Red
2 NO + 2 NC
